J&S Optical Transmitters

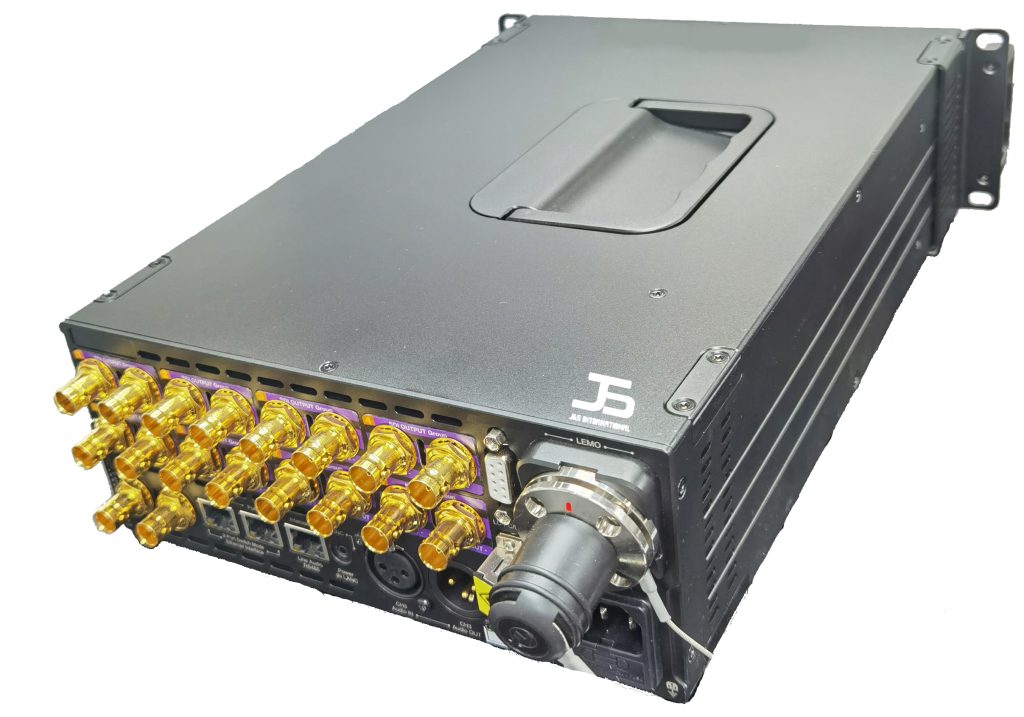

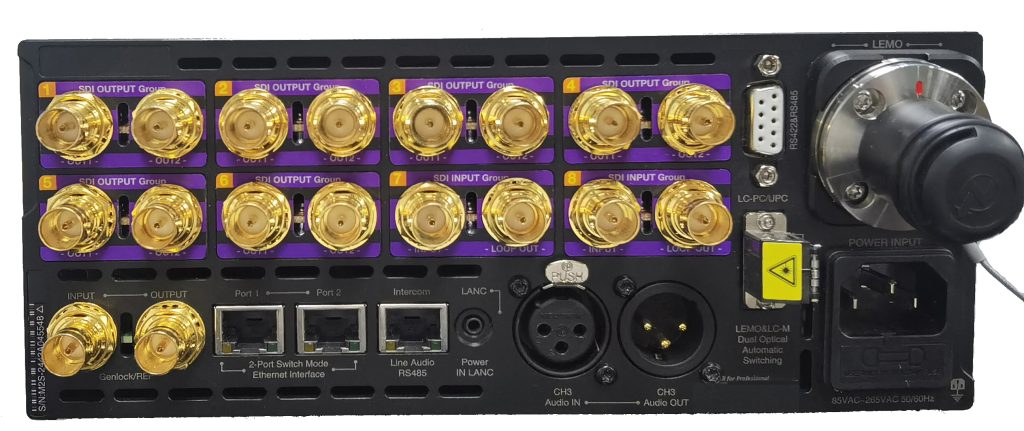

J&S IOTS-8K

Optical fiber transmission

  • Single-mode fiber: LC/UPC, built-in CWDM, single fiber transmission
  • SMPTE cable: SMPTE311M/SMPTE304M

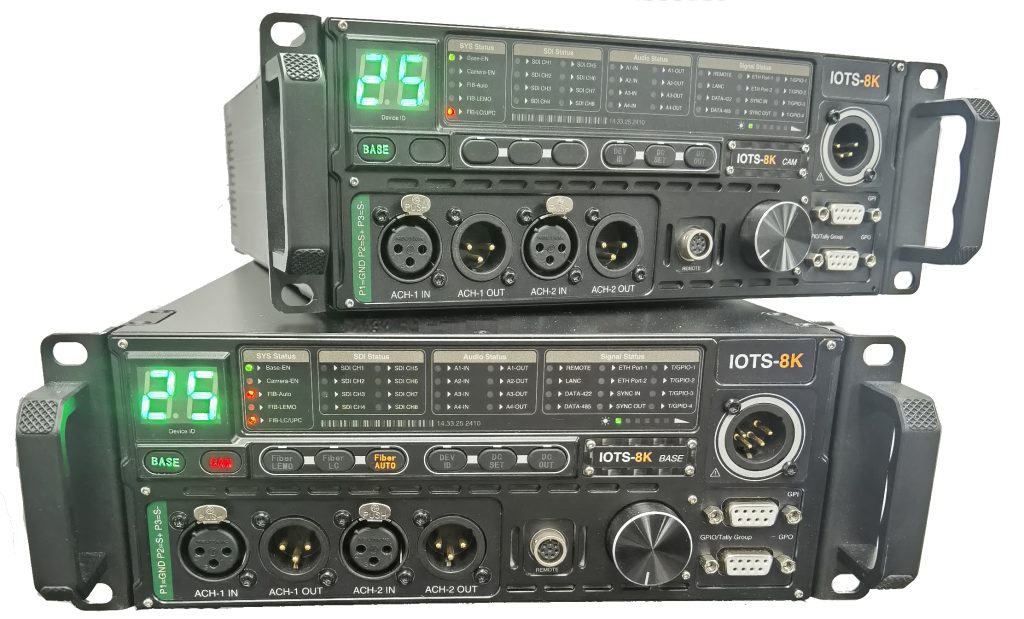

  • Fiber cascade: Two sets of Base/Stage devices cascade through a single-mode fiber, Base and Stage end through a SMPTE fiber cable to complete the double signals transmission.
  • Fiber Switchover: SMPTE cable and single-mode fiber automatic switchover, Manual or automatic

SDI:

  • 8 channels 12G-SDI, 143Mbps~11.88Gbps, the direction can be configured before delivery
  • ST-2082-1、ST-2081-1、ST-425MA/B、ST-424M、ST-344M、ST-310M、ST-305M、ST-297M、ST-292M、ST-259M
  • Built-in multilevel high-speed anti–jitter circuit to ensure lower output jitter
  • Supports Pathologic signal transmission

SYNC: 1 bi-directional synchronization signal, support Black-Burst and Tri-Level three level signal

Analog Audio: 3 channels bidirectional analog audio, +24dBu high dynamic range, input/output 0dB gain, THD+N less than 0.03%@+24dBu, balanced /unbalanced automatic conversion

GPI/O:4 bi-directional GPI/O, 2 DB9 interfaces, supports short trigger and 3.3V/5VTTL level trigger mode

RS422/485
1 full duplex RS422 data and 1 half duplex RS485 data, DB9 interface, RS422 support 921600 ultra-high bit rate transmission

Ethernet:
2-port Gigabit Ethernet, 10/100/1000M adaptive Ethernet transmission, MDI automatic flipping, support 802.1AS/0at/0av/0bv audio and video bridge standard, support 1588v2 Layer2 and Leyer3, 8KMAC address table and 10K super frame

RTS Intercom:
1 channel of RTS standard analog Intercom transmission through the RJ45 interface, with the RTS standard protocol

LANC:
1 channel LANC transmission, support LANC power supply

8-pin control signal:
1 channel SONY 8-pin protocol control signal transmission, support RCP power supply

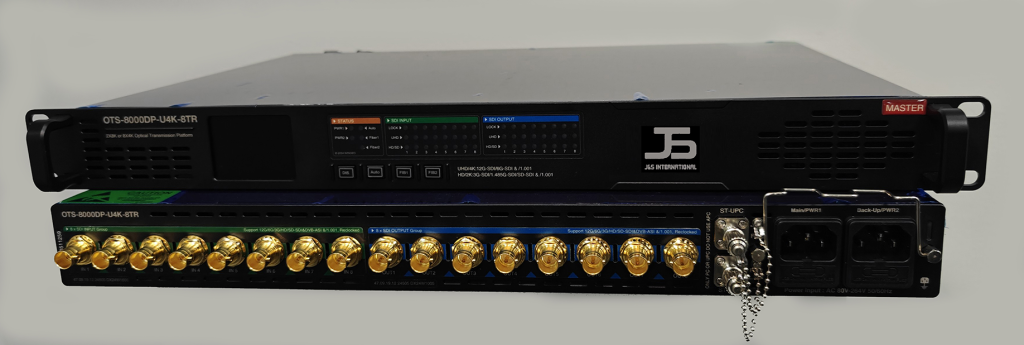

J&S OTS-8000DP

Single-mode fiber: FC/UPC, built-in CWDM, single fiber transmission

SMPTE cable: SSMPTE292M, 344, 252M, 294M, 305M, 310M, 344M, 424M, 425M A/B

Fiber cascade: Two sets of Base/Stage devices cascade through a single-mode fiber, Base and Stage end through a SMPTE fiber cable to complete the double signals transmission.
Transmitter and Receiver built-in with relocker.

Fiber Switchover: Supports automatic active/standby switchover of dual optical links (optional)

SDI: Supports 1 – 8 SDI signal multiplexing (CWDM) single-fiber transmission.
143Mbps, 177Mbps, 270Mbps, 360Mbps, 540Mbps, 1.4835Gbps, 1.485Gbps, 2.967Gbps, 2.9Gbps

Supports SD-3G SDI Pathologic signal transmission (optional)

Power Supply:
Dual redundant power supplies; 12V to 24V DC power supply or 110V to 240V AC power supply.
A single power supply can support full load normal work

Fiber distance:
10km standard, 20km optional

Cable EQ:
(Belden 1694A) 3G-210m

Display:
LCD screen to show device temperature, power supply, optical link, Tx/Rx optical signal indicators

J&S IOTS-MINI-4K

Bidirectional 12G-SDI

  • Backward compatible with 6G/3G/HD/SD

The J&S IOTS-Mini-4K comprises of a 2 -channel 4K interface, which can form a bidirectional 4K transmission link. The transmitting end has a Loop out port and the receiving end has a divided dual output.

Features of the J&S IOTS-Mini-4K includes:

  • Supports SMPTE ST-2082 full format transmission.
  • Compatible with signals of different formats and rates such as 5.94Gbps/5.934Gbps/2.97Gbps/2.967Gbps, 1.485Gbps/1.4835Gbps, 270Mbps etc.
  • Suitable for any format transmission from SD to 4K.
  • Multiple external interfaces Ethernet, BB, Data

The J&S IOTS-Mini-4K has multiple external interfaces, plug and play, which makes it convenient to operate. It supports 10/100/1000M adaptive Ethernet, bidirectional Black-Burst synchronous signals and bidirectional RS422/485 data transmission at a rate of up to 2Mb.

J&S MINI-100T/R-12G (4K Ultra High Definition Portable Optical Transceiver)

The J&S Mini-100T/R-12G 4K ultra high-definition optical transmission product is a mini terminal product with 4K signal transmission function. This product has an outstanding indicator characteristics and high security reliability. It is widely used in live streaming, sports events, important conferences, concerts, production companies and other high standard live streaming needs.

The product is compatible with the following.

  • All SMPTE standards (including but not limited to 11.88Gbps, 11.868Gbps, 5.94Gbps, 5.934Gbps, 2.97Gbps, 2.967Gbps, 1.485Gbps, 1.4835Gbps, 270Mbps various SDI signals.
  • NTSC/PAL non-standard image formats that comply with ST-2082-1, ST-2081-1, ST-424, ST-425M, ST-344M, ST-292M and ST-259M standards.
  • Compatible with DVB-ASI asynchronous serial digital interface format signals that comply with digital terrestrial broadcasting standards.

Specifications:

  • Supported transmission rate: 143Mbps ~ 11.88Gbps
  • Built-in 3 stage high speed jitter eliminated circuit to ensure ultra-low output jitter
  • The sending end is equipped with a LOOP independent loop out port, which has jitter cancellation function and can be used as a signal conditioning and signal source.
  • The receiving end has independent dual output ports to ensure fault isolation between ports and has an independent jitter elimination circuit.
  • Supports SD-12G arbitrary format pathological code transmission.
  • Supports SD-12G arbitrary format Equalizer test graphics transmission.
  • Supports SD-12G arbitrary format PLL test graphics transmission.
  • Optical port adopts an external FC/UPC interface, with low insertion loss and high security.
  • Equipped with SDI signal format indicator LED group, signal locking LED group.
  • Transmission distance: 20km, 40km (Optional)
